LINBO3 10G optical eom ampl. lithium niobate (1000 lot)

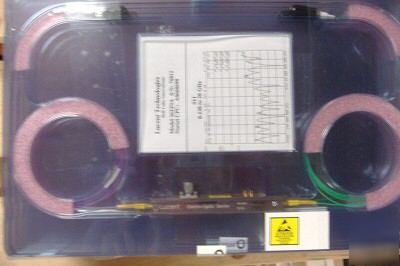

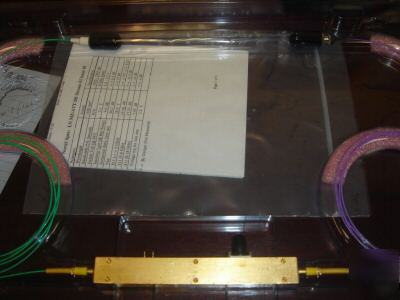

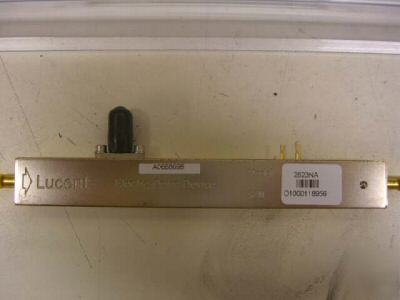

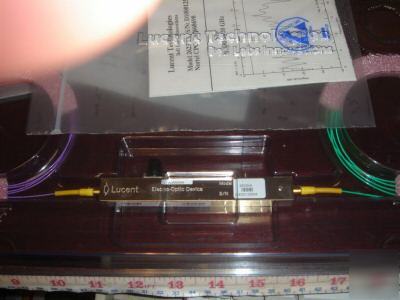

1000 units of new in box lucent 2623na 10 Gbits/s Lithium Niobate optical intensity modulator. Electro-Optic Modulator Features Ti-diffusion process Single-drive technology Operation at 1.55mm wavelength Slim, hermetic package Bandwidths up to 20 GHz Operational over a temperature range of 0C to 70C 43W design for minimal electrical reflections Angled interfaces for minimal optical reflections Integrated optical attenuator available on 10 Gbits/s modulator (2623NA) Tested to Bellcore 468 Benefits Excellent long-term bias stability Internal polarizer Low modulation voltages Applications Digital high-speed telecommunications — SONET: OC-1 through OC-192 — SDH: STM-16, STM-64 — Undersea communications Internet data communications SONET/SDH test equipment The Lithium Niobate Modulators include a single-drive modulator (2623CS) and a single-drive modulator with an integrated attenuator (2623NA). Both devices are capable of modulation rates up to 10
