Lundahl opcon ultrasonic distance sensor robotic nos


OPCON LUNDAHL ULTRASONIC RANGING SENSOR
ROBOTICS and INDUSTRIAL APPLICATIONS
COLLISION AVOIDANCE, PROXIMITY SENSING, TARGET SEEKING
MODEL UC60-ZD1A-D, 10 to 30 VDC, 60 mm DIAM

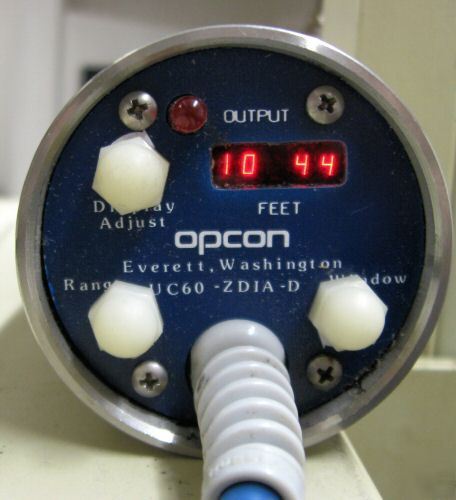

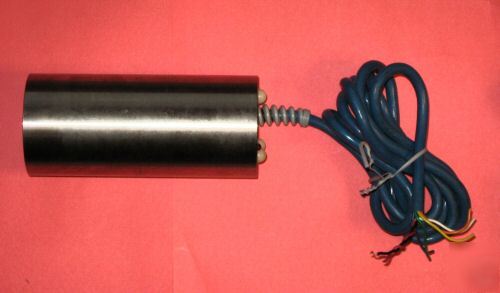

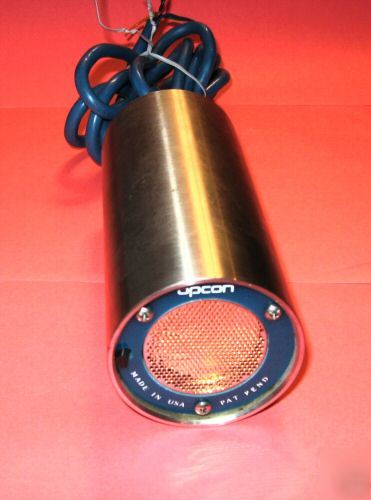

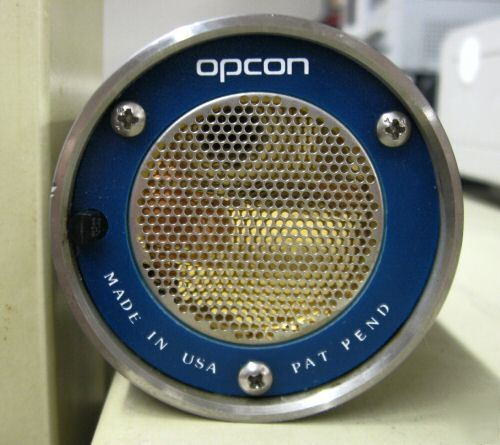

Digital readout indicates range directly in feet, hundredths of feet. Useable range about 30 feet maximum. Based on Polaroid ultrasonic transducer, with temperature compensation. Housed in 60 mm diameter stainless steel tube. Requires DC supply between 10 and 30 volts at 100 mA. Multiturn pot adjustments for proximity threshold distance and window depth and display brightness. Update rate about 10 Hz. Outputs: Proximity Open Collector NPN, Sync, and Echo Signal. Installation instructions, applications hints, and wiring diagram furnished with sensor.
