New 12 key pad vandal-resistant storm 1000

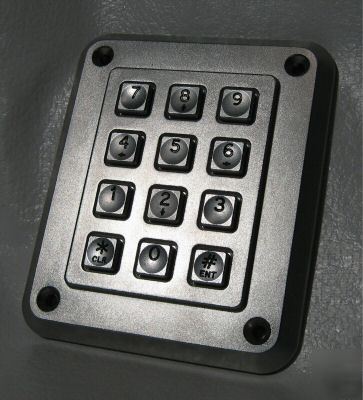

This is a ruggedized, weatherized cast metal key pad for outdoor use. It utilizes conventional conductive-pad technology behind a sealed membrane with heavy-duty cast metal keys. Supplied with additional blank key buttons for custom engraving. Connections are via an 8-pin 0.1" pitch header. The arrangement is a 3 (column) x 4 (row) matrix of contact closures for a total of seven pins (one pin unused).
Storm 1000 Series 12-key 'Calculator layout' keypad for Public/Outdoor Environments
• Anti-Vandal design ideal for public environment
• Features metal casing and keys
• Fully sealed, to IP67, for use in outdoor environments
• Operational life: 4 Million cycles (min) per key
• Operational Temperature Range: -40°C ~ 100°C
• Gold on nickel plated FR4 contact PCB
• Connector: 0.1 pitch, gold plated, square pin, male

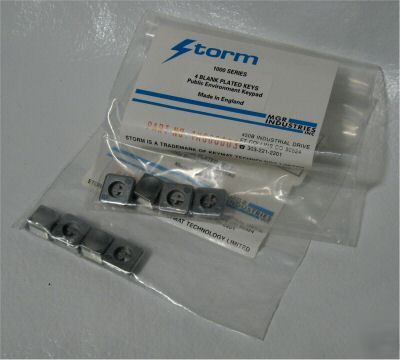

New, with two packs of four blank keys for custom engraving. List Price $78.
View more details here: http://dkc3.digikey.com/PDF/T073/P1854.pdf
