New ge tranquell he transient voltage surge suppressor
Integrated Tranquell HE Transient
SOCOMEC Special Purpose Switch
(Designed for GE Distribution Equipment)
costs. Please state if address is business or residential.

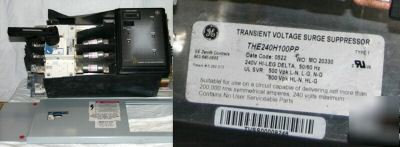

GE Zenith Controls Integrated Tranquell HE Transient Voltage Surge Suppressor
* Operating Frequency 50/60 Hz
* Connection 6 t0 2/0 Conductors, Parallel Connected
* Operating Temperature -40 C to +65C
* Operating Humidity 0% to 95% Non-Condensing
* Nominal Voltage (Volts RMS) 120/240 Delta HL
* Configuration 3 Phase, 4 Wire + Ground
* Suppressed Voltage Rating UL 1449 2nd Edition 400/700 L-N / 400 L-G /400/700 N-G
* MCOV% Max. Continuous Operating Voltage 115%
*PP suffix available for all ka ratings (integral to Spectra Panel)
Note: For TVSS Field installation kit, add the prefix “A†and replace “PP†suffix with “K†suffix
Example THE240H100PP Factory Installed ATHE240H100K Field Installation
Ferraz Shawmut SOCOMEC Surge Disconnect Switch
* TVSS Panels up to 600VAC, 200kA 8x20 µs waveform
Ferraz Shawmut VSP 100 MOV Protector Surge Suppression Fuses
* VSP Fuses Rated 600 VAC, 200kA I.R.
* Surge Rating of 100kA 8x20 µSec Capacity
* Designed to help meet UL 1449 Second Edition Requirements
Tranquell HE Transient Voltage Surge Suppression (TVSS) devices – This robust product protects downstream sensitive electronic and electrical circuits from damaging effects of surges or spikes. Its strength is in its clamping performance from being integrated into the power panel and its durability to repetitive surges. The Tranquell is one of the most flexible TVSS designs in the market by being available in a wide range of mounting configurations that includes, integral to a power panel, power panel box extensions, and a wide range of enclosure types for wall mounting. All products are UL Listed and Third Party tested.
The TVSS connects to the panelboard or switchboard bus bars without adding width or depth to the panel enclosure and occupying 7X of vertical bus space. This unit has bee tested to surge current ratings per NEMA LS-1, up to 200kA per mode, including the fuses in the surge path. Standard features include a surge counter, audible alarm, indicating lights, dry contacts, and an integral surge rated disconnect.
All mode protection is provided with surge components (MOVs) connected on the phase to neutral, phase to ground, and neutral to ground paths as appropriate for the voltage configuration.
Integrated Tranquell HE Transient Voltage Surge Suppressor (TVSS) Features
* UL Tested to 200,000 Amperes Symmetrical Withstand
* Integral Surge Rated Disconnect
* Tranquell HE Device is Capable of Surviving a Minimum of 20,000 Category C3 Impulses (10kA, 20kV) per mode
* Device Capable of Surviving a Minimum of 5,000 Longwave (10x1000µs) Impulses per mode.
* Patented Thermal Fuse Technology in Combination with Surge Rated Fuses
* Form C Dry Contacts for Remote Monitoring
* Green Status Indicating Lights, Red Service Light
* Audible Alarm with Test/Disable Feature
Ferraz Shawmut Surge Disconnect Switch – The Ferraz Shawmut Surge Disconnect Switch is an extremely compact, high performance, manually operated switch. It is specifically designed to withstand the high surge current of 200kA with an 8x20 µs waveform seen in today’s transient voltage surge protection device (SPD) applications. Ferraz Shawmut’s Surge Switch utilizes a unique contact design that actually clamp contacts tighter during a surge.
SOCOMEC Surge Disconnect Switch Features
* Only Surge Rated Disconnect Switch Available Today
Ferraz Shawmut VSP MOV Protector Surge Suppression Fuses – Ferraz Shawmut surge suppression fuses are specially designed to address the protection of TVSS systems. The surge suppression fuses have been specially designed to withstand 8x20µSec pulses without opening, allowing the TVSS system to react to the surge. All surge suppression fuses have a 8x20µSec surge rating, not a continuous current rating. Under AC short circuit conditions these surge suppression fuses are very current limiting.
Ferraz Shawmut VSP 100 MOV Protector Surge Suppression Fuses Features
* Protection of TVSS Devices
* Coordination with Other Protection Devices
Descriptions are Intended Only as a Guide and Their Accuracy Should be Checked with the Manufacturer.
