Used abb robots irb 6400 with S4C control
YOUR SOURCE ONLINE FOR USED ROBOTS. WE EXPORT WORLDWIDE

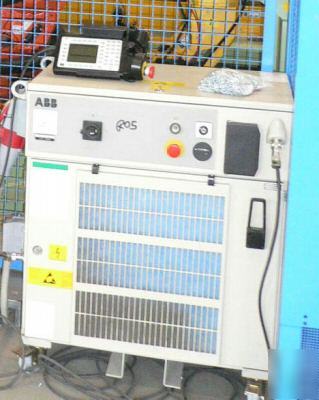

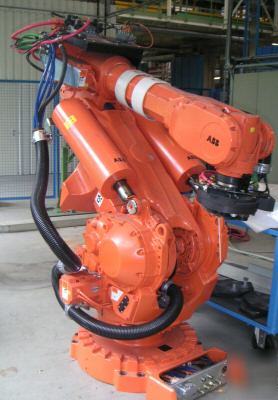

The 6-axis IRB 6400 manipulator and S4C robot
controller provide short and precise cycle times, rapid
change-overs and consistently high process precision.
TECHNICAL DATA, IRB 6400 INDUSTRIAL ROBOT
All IRB 6400R-versions have Foundry Plus protection.
2.5-150, 2.5-200 and 2.8-150 50+320 kg
Integrated signal supply 10 poles 50 V DC
Integrated air supply Max. 10 bar
Path repeatability at 1 m/s (based on ISO path)
Max. TCP velocity on ISO-plane >2-3 m/s
Max. TCP acceleration on ISO-plane >10 m/s2
Positioning 1 Rotation 360° 360° 360°
Reorientation 4 Wrist 600° 400° 600°
Axis maximum speed, °/s for models 2.5-120 2.5-150 3.0-100
Supply voltage 200–600 V, 50/60 Hz
Rated power, supply transformer 7.2 - 7.8 kVA
Safety Double circuits with supervision,
emergency stops and safety functions ,
{ Industrial Machinery Export Bilbao S.L.
c/ Carmelo Etxegaray, Pabellon 21
48100 Mungia (Vizcaya) - SPAIN
Telf: 34-607386392 / Fax: 34-946741786
E-mail: ****@machinery-export.com
Other models available: KR6, KRC1, KRC32, IR 360, KRC2, IR364, KR125, KR150, KR15, KR200, ABB, IRB 1400, IRB 2400, IRB 4400, S4C, IRB 6400R, IRB6400, Staubli, RX90, CS7M, Adept Vision, Fanuc, motoman, Rj2, VRS1, linear unit, 7 axis, SONY srx-611, hirata
