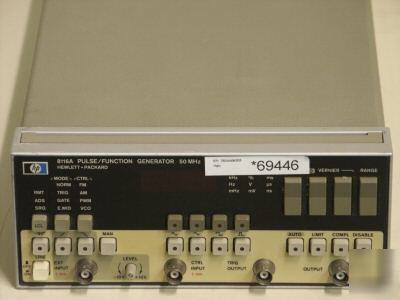

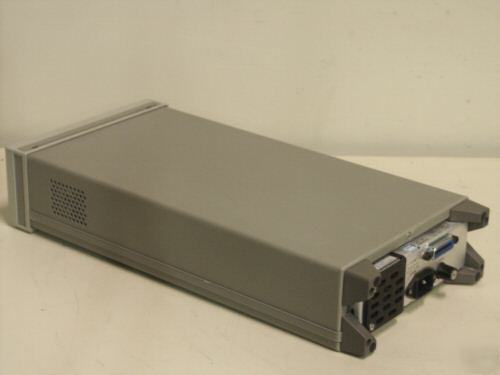

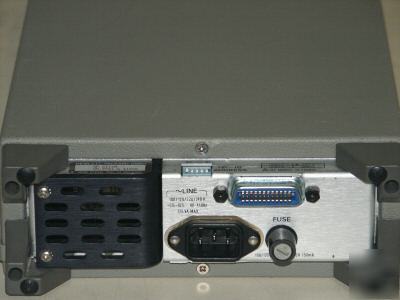

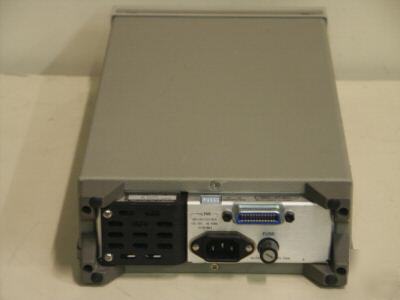

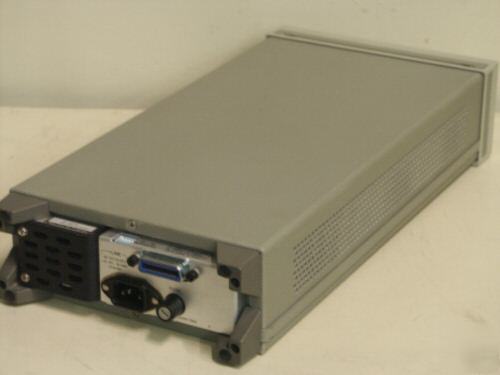

Hp 8116A pulse / function generator. 1MHZ to 50MHZ rep.
The 8116A Fully Grogrammable Pulse/Function Generator. 1mHz to 50MHz, 10% to 90% Duty Cycle. Pulse Width 10nS to 999mS, transitions <7nS. 3 1/2 digit resolution.
With option 001 ( 001= Burst and logarithmic sweep)
It Features Pulse as Well as Function Generator Capabilities in One Small Instrument. 1mHz to 50MHz Band for All Waveforms and a Wide Choice of Operating and Modulating Modes Assures High Flexibility.
It Offers a wide Range of Operating Capability, Self-prompting Operating Concept, Error Recognition and Self test.
Sine, Triangle, Square, Wave Functions, and DC, Variable (10 ns/min) Pulse Width, 6 ns Transitions. In Normal Mode Its Auto-vernier Increments any Desired Parameter Continuously Until a Stop Signal is Applied.
As if All of This Wasn’t Enough, the HP 8116A Offers a Safety Feature Which Prevents the Output From Exceeding a Given Magnitude.
Unless Otherwise Stated Specifications are Quoted for 50% Amplitude in Normal Mode.
Range - 1 mHz to 50MHz Output: 7.95 V
Resolution - 3 Digits, Best Case 10uHz (0.01mHz)
Stability - +/=0.2% (1hr) or +/=0.5% (24hrs)
Repeatability - Factor 4 Better Than Accuracy
Frequency(FRQ) Pulse Mode/waveforms=50% dury cycle NOT50%
1m Hz = FRQ <100 kHz +/-3% +/-0.3mHz +/-3% +/-0.6mHz
100 kHz = FRQ <10 MHz +/-5% +/-10%
10 MHz = FRQ = 50 MHz +/-5% N/A
Jitter <0.1% + 100ps <0.2% + 100ps
RMS Jitter 0.03% + 25ps 0.06% + 25ps
Frequency(FRQ) Range and Resolution Accuracy
1mHz = FRQ < 1 MHz 10% to 90% in Steps of 1% +/-0.5LSD
1MHz = FRQ < 10 MHz 20% to 80% in Steps of 1% +/-3.0LSD
10MHz = FRQ < 10 MHz 50% Fixed +/-5.0LSD typical.
"LSD = Least Significant Digit - (Only Units and Tens are Displayed).
Range - 10.0ns to 999ms (Maximum = 1/FRQ - 10ns)
Resolution - 3 Digits, Best Case 100ps (0.1ns)
Repeatability - Factor 4 Better Than Accuracy.
Jitter - 0.2% + 200ps (Width = 10us)
Output Impedance - 50 Ohms +/- 2.5 Ohms.
Amplitude/Offset - Amplitude and Offset Are Independently Variable Within the Following two Level Windows:
Aplitude Range 10mV to 99.9mV(p-p) 100mV to 16V (p-p)
Amplitude Accuracy* 3 Digits (best case 0.1mV) 3 Digits (best case 1mV)
Offset Accuracy +/-1% of Programmed Value +/-0.5% of Programmed Value
+/-1% of Amplitude +/-1% of Amplitude
*The Amplitude Accuracy for Sine and Triangle is Specified at 1kHz. The Following Table Specifies the Amplitude Flatness at Other Frequencies for an Output Signal With 50% Duty Cycle:
1mHz = FRQ < 1MHz +/-3% +/-3%
1MHz = FRQ < 10MHz +/-5% +/-5%
10MHz = FRQ < 50MHz +5%, -15% +5%, -25%
Sine: (The following Specifications Apply for Normal Output Mode and 50% Duty Cycle)
Total Harmonic - <1% (-40dB), (10Hz to 50 kHz).
Distortion (THD) This may Increase by 3dB Bellow 10°C.
Harmonic Signals - <2% (-34 dBc*) for 50kHz = FRQ < 1MHz.
<7% (-23 dBc*) for FRQ >/= 1MHz and Amplitude < 8V (p-p)
*dBc = dB Relative to Carrier (Fundamental).
Linearity - < +/-3% (10% to 90% of amplitude and 100mHz = FRQ < 1MHz)
Transition Time - < 7ns (10% to 90% of amplitude)
Pulse Perturbations - < +/-5% of amplitude +/-2mV.
DC Output: (A DC Output Voltage is Generated When All Waveform Selection Keys are Deactivated).
Resoloution - 3 Digits, best case 1mV
Repeatability - Factor 4 Better Than Accuracy.
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit...
If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money.
