3M electrical tape 92 - polyimide film - kapton - 1/2"
3M Electrical Tape 92 - Polyimide Film - Kapton - 1/2" Wide
* Brand new Polyimide Film Tape
* 1 mil thick x 1/2" wide x 108 feet (36 yards) long
* Backed with a thermosetting silicone adhesive
* Temperature rating: 180 deg C
* Adhesive: Thermosetting silicone
* Backing: Polyimide film
* Backing Thickness: 1 mil
* Total Thickness: 3 mils
* Insulation Resistance: > 1,000,000 Megohms
* Dielectric Breakdown: 7,500 Volts
* Breaking Strength: 30 lbs/in
* Adhesion To Steel: 25 oz/in
* Typical applications include: Wrapping coils, transformers, capacitors and wire harnesses
* For product datasheet, please click this LINK (PDF - 37 kB)

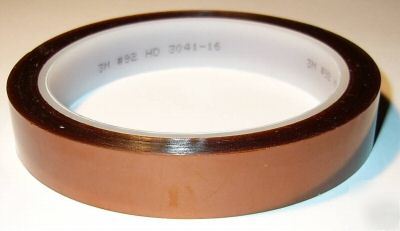

For closer detail of the polyimide film tape, please click on the pictures below.
