Eg&g parc 5301 lock in amplifier w/ 5316 diff preamp

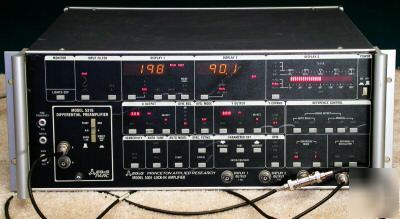

EG&G PARC 5301 Lock In Amplifier w/ 5316 Diff Preamp
The 5301 Two-Phase Lock-in Amplifier combines proven analog techniques of signal recovery with digital microprocessor control.
· Includes a 5316 Differential Preamplifier.
· 100 nV to 500 mV input sensitivity, full scale
· Common mode rejection at 60 Hz >100 dB
· Lowpass, highpass, bandpass, and band reject input filters with adjustable Q settings from 1 to 100 are provided
· Features two-phase operation, multi-function signal channel, automatic tuning, automatic phasing, auto measure, and improved low frequency operation
· Provides linear, exponential and sliding point averaging
· Performs internal computations and internal curve storage
· Includes GPIB and RS232 computer interfaces
· Internal 2Hz – 110 kHz reference oscillator with 100 uV – 10 V rms amplitude
· Three displays (3.5-digit) for viewing parameters being measured or set
Weight and Dimensions rounded up: 39 lbs. 23x19x7 (L x W x H in inches)

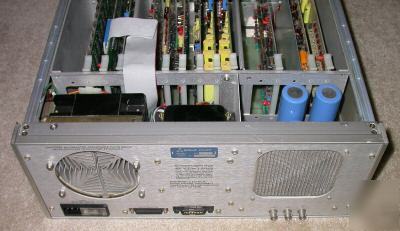

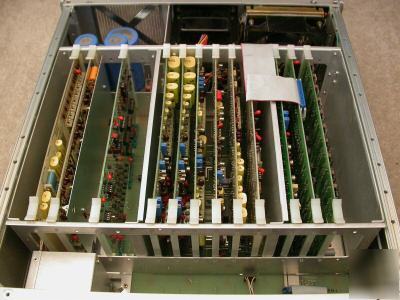

This instrument is in excellent condition. It was recently purchased online and was used to develop and test a precision optical phase shifter mechanism. This project has been completed and the instrument is now available for resale. The interior components are very clean as shown in the photograph. This may indicate that it has been used sparingly. The cooling fan is clean and very quiet.
Photocopies of selected pages from the factory instruction manual are included. These include Section 2: CHARACTERISTICS, and Section 5 OPERATING INSTRUCTIONS. The full manual is available for rent from Consolidated Surplus (http://yourmanualsource.com).
