> Emx uvx-300 sensor - uv luminescence sensor - 10-30 vdc

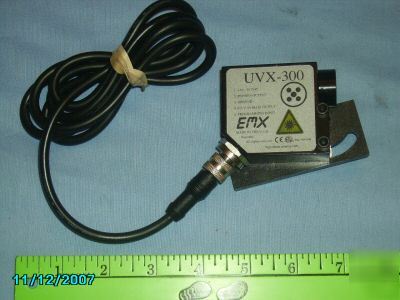

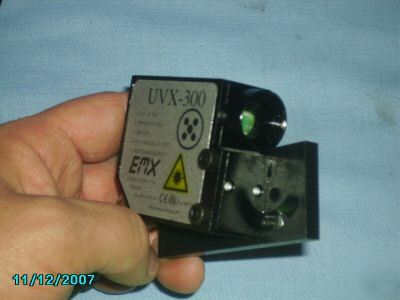

Emx uvx-300 sensor - uv luminescence sensor - 10-30 vdc
Here is further information direct from the EMX website ( ), but the website has more technical data available.
Confirm manufacturing processes more reliably than vision
systems that cost ten times more.
The patented technology in the
UVX-300 luminescence sensor effectively detects UV luminescent
materials and markers. The UV light source in the UVX-300 is directed
towards a target and the visible light is reflected from the target back
to the UVX-300. Because the UV luminescent materials and inks are
invisible under a normal light spectrum, it is possible to mark products
and parts without affecting their appearance. Some materials such as
wood, grease and glue may contain UV luminescent materials
naturally and in other cases the UV pigment may be added to the
The UVX-300 was designed to meet several requirements.
First, the UVX-300 had to have a long range and be easy to program.
Second, it had to have a quantative display so the user can see what
the sensor is registering. Third, the UVX-300 had to have exceptional
resolution so it can effectively suppress the background on large
targets and limit the detection to a contained area on small targets.
Last, it had to provide all the output function variations in the same
model to limit the number of models that have to be carried in stock.
Our design team achieved those requirements.
• Unique numerical display lets you see the intensity of each reading.
Now it’s easy to refine processes and hysteresis.
• 3 to 6 times the range of any competing sensor. Won’t get
bumped or dirtied by target in the process.
• Only UV sensor with both auto-teach and manual calibration. Easy
for low-skill operators, but able to be finely tuned.
• Adjustable UV light projection and high resolution allow pin-head
• Fast and convenient integration. In one sensor you get both analog
and discrete output, auto-detect for PNP/NPN.
• Smallest and fastest on the market.
According to a recent study by EMX Industries, the most UV-adoptive industries are automotive and packaging, representing 60 and 20 percent of the UV sensor applications, respectively.
In 80 percent of cases brought to EMX’s attention, UV technology is enabling applications that could not be done using other sensor and vision technologies, because they had trouble reliably detecting the presence of their targets, or because the cost could not be justified.
Overall, UV sensor applications cover a wide range of industries. EMX has released a list of manufacturing applications that are using or considering using UV luminescence sensors.
Inspecting a muffler pipe for the presence of a copper fitting. Detecting the presence of a UV-curable gasket. Verifying correct assembly of connecting rod caps. Detecting operator ID tape on ignition wire. To detect rivets marked with UV material. To make a screwdriver unit activate when a UV mark is set on a connecting rod.
Detecting the presence of: glue on cartons, surgical staple cartridges, glue on a paperboard background, a patch on a web.
Detecting the presence of tape on wiring harnesses.
On ring-tab cans, detecting a transparent seal that prevents the seam from rusting. Detecting the presence of straws attached to juice box containers, when the orientation of the straw is too variable for a vision system. To detect date codes on packages.
Detecting the presence of a plastic tamper-proof seal on a bottle.
Detecting the presence of a fluorescent thread, to verify that a seam has been sewn. Detecting yarn adhesive on fabric weavers.
Detecting the presence of excess glue in a joint of wood furniture.
Detecting the presence of paint on a product, lubricant on bearings. To detect clear coatings on wired parts.
Inspecting lumber for the proper coating of clear fungicide. Grading and sorting lumber prior to cutting and trimming.
Used as tracers to find leaks of oils, refrigerants.
I try to fully describe the item, but please contact me if you have any further questions. I will reply as soon as possible.
This item comes from a 100% smoke-free home!
Please e-mail me with any other questions.
