Sony tektronix A6906S optical fiber isolation system

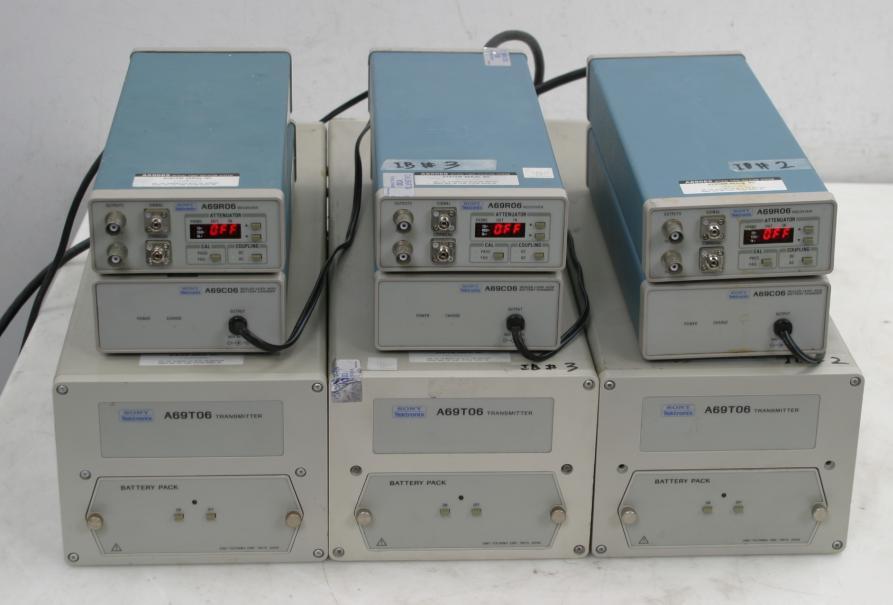

Sony Tektronix A6906S Optical Fiber Isolation System
A69R06 Receiver A69T06 Transmitter A69C06 Charger&Batt
Used, working pulls. Three available. Complete set including the A69R06 Receiver, A69T06 Transmitter (mounted in case with battery pack), A69C06 Battery Charger to recharge the battery pack for the transmitter. These have been sitting unused for a couple of years now so I cannot guarantee the batteries hold a charge, or if they do for how long. Guaranteed not DOA. These are matching serial number systems.
* Up to 200m of Probe-to-scope Fiber Optic Separation
* Selectable 20X to 5000X Attenuation
The A6906S is the highest performance Isolation System available. This is what you need to make floating measurements on state-of-the-art power control devices such as IGBTs used on fast motor drives and switching power supplies. The bandwidth is 100 MHz and an extraordinary 200 meters of fiber optic cable is available. All system parameters, including attenuation, can be controlled via a General Purpose Interface Bus. System CMRR with the probe is 60 dB (1,000:1) out to 1 MHz and 40 dB (100:1) at 10 MHz. This premium product will exceed your expectations for quality, performance and reliability.
Weight and Dimensions rounded up: 23 lbs. 19x7x10 (LxWxH in inches)
