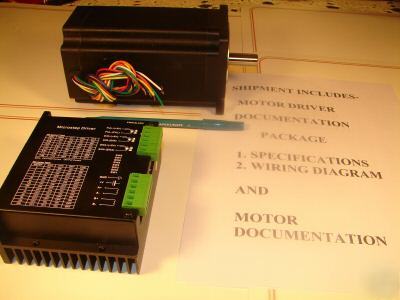

Stepper motor 1810 oz-in 8 wire and 7.8 amp pwm driver
Brand New NEMA 34 1810 oz-in stepper motor Includes documentation and email setup support
Suitable for dirving mill tables with 1-1/4" to 1-3/8" drive screws
Single Shaft Front shaft=1/2" x 1-3/16" .
Bipolar series Volts=.6.6, Amps=4.4, Ohms=1.5, Holding torque= 12.8 Nm. 0r 1810 oz-in
Bipolar parallel Volts=3.34, Amps=8.8, Ohms=0.38 Holding torque= 12.8Nm. or 1810 oz-in
Unipolar Volts=.65, Amps= 6.2, Ohms=0.75, Holding torque= 9 Nm or 1275 oz-in
Body Diameter= 85.65 mm or 3.36"
2: Supply Voltage to +80VDC, 7.8A
3: Automatic Idle-Current Reduction
4: Micro step Resolutions Up to 51,200 Steps/Rev.
5: Optically Isolated Signal I/O
6: Inaudible 20KHz Chopping Frequency
8: 14 Selectable Resolutions in Decimal & Binary
9: Mixed-Decay Current Control For Less Motor Heating
10: Over-Current, Over-Voltage & Short-Circuit Protection
11: Suitable for 4, 6, 8 wires motors
12: Size: L x W x H : 115 x 97 x 31mm
