Terrasat 15 ghz rf amplifier gain 20DBM in 8.5 db min
TERRASAT 15 GHz RF AMPLIFIER Gain 20dBm in 8.5 dB min (NEW)
Frequency Band = 14.400 to 15.355 GHz
RF Output Power @ Psat = 15GHz @ 20dBm in 28.8 dBm min.
Gain @ Psat = 15 Ghz @ 20dBm in 8.5 dB min. = 21
Gain Flatness = +/- 1 dB / any 300 MHz
Gain Compression @ Psat = 3 dB max Noise Figure = 10 dB max.
Power Consumption = 6 watts max.

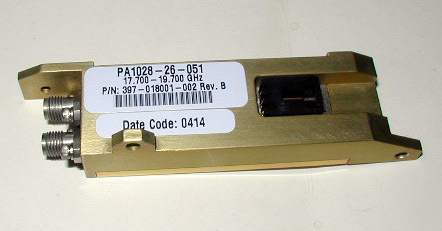

Note: Picture shows the 18 Ghz model PA1028
