Watlow anafaze 8CLS modular control system

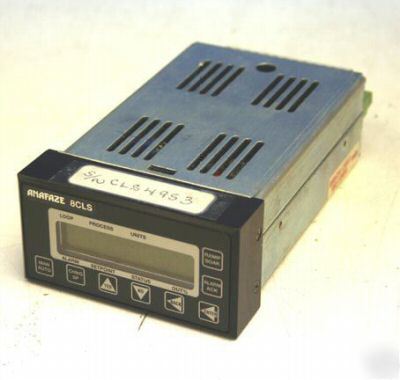

Watlow Anafaze 8CLS Modular Control System (021607706120)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!
Watlow Anafaze 8CLS Modular Control System
* The Watlow Anafaze CLS is a modular control system with up to 16 fully independent loops of PID control. It functions as a stand-alone controller; the CLS 1/8 DIN front panel has a Liquid Crystal Display (LCD) and touch keypad for local display and local parameter entry. You can also use it as the key element in a computer-supervised data acquisition and control system; the CLS can be locally or remotely controlled via an RS-232 or RS-485 serial communications interface.
* Resistive Temperature Detector Sensors are Standard Inputs: Two types of standard three wire 100 ohm platinum DIN curve sensor are standard inputs for the CLS.
* Automatic Scaling for Linear Analog Inputs: The CLS automatically scales linear inputs used with other industrial process sensors. Simply enter two measurement points. For example, to scale a PSI sensor enter the endpoints: Low PV is 10 PSI, while High PV is 100 PSI. All other values for that loop will automatically be in PSI.
* Dual Outputs Standard: The CLS includes dual control outputs for each loop, with independent control constants for each output.
* Independently Selectable PID Output Modes: You can set each control output to ON/OFF, Time Proportioning, Serial DAC, or Distributed Zero Crossing mode. You can set each output control mode for ON/OFF, P, PI, or PID control with reverse or direct action.
* Flexible Alarm Outputs: Independently set high/low process alarms and a high/low deviation band alarm for each loop. Alarms can activate a digital output by themselves, or they can be grouped with other alarms to activate an output.
* Alarm or Control Outputs: You can set high/low deviation and high/low process set-points to to operate digital outputs as on/off control functions instead of alarms.
* Global Alarm Output: When any alarm is triggered, the Global Alarm Output is also triggered, and it stays on until you acknowledge it.
* Watchdog Timer: The CLS watchdog timer output notifies you of system failure. You can use it to hold a relay closed while the controller is running, so you are notified if the mocroprcessor shuts down.
* Front Panel or Computer Operation: Set up and run the CLS from the front panel or from a local or remote computer. Watlow Anafaze offers ANASOFT, our IBM AT or IBM-PC compatible software you can use to operate the CLS. ANASOFT has these features: Process Overviews, Parameter Setup, Graphic Trend Plotting, Data Logging
* Multiple Job Storage: Store up to 8 jobs in protected memory, and access then locally by entering a single job number or remotely via digital inputs. Each job is a set of operating conditions, including set-points and alarms.
* Non-Linear Output Curves Standard: Select either of two non-linear output curves for each control output.
* Auto-tuning Makes Setup Simple: Use the AutoTune feature to set up your system quickly and easily. The CLS internal expert system table finds the correct PID parameters for your process.
* Pulse Counter Input Standard: Use the pulse counter input for precise control of motor or belt speed.
* Number of Control Loops: 8 plus one pulse loop
* Number of Analog Inputs: 8
* Input Switching: differential solid state MUX switching
* Input Sampling Rate: 3x/sec (333 ms) at 60 Hz; 2.5x/sec (400 ms) at 50 Hz
* Analog Over Voltage Protection: +/- 20 Volts referenced to digital ground
* Common Mode Rejection (CMR): For inputs that don’t exceed +/-5 Volts, >60 dB DC to 1 kHz, and 120 dB at selected line frequency
* A/D Converter: Integrates voltage to frequency
* Input Range: -10 to +60 mV.
* Resolution: 0.006%, greater than 14 bits
* Calibration: Automatic zero and full scale
