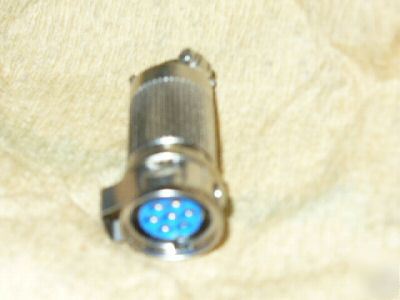

Connector,plug,electrical
BODY STYLE - 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF
BODY LENGTH - 1.210 INCHES MINIMUM AND 1.250 INCHES MAXIMUM
OVERALL DIAMETER - 0.720 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - SPRING FRICTION
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 0.240 INCHES MINIMUM AND 0.280 INCHES MAXIMUM
SHELL MATERIAL - ALUMINUM ALLOY
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-268,T4 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT - NICKEL
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - AHCC 24 SINGLE MATING END
INSERT MATERIAL - PLASTIC DIALLYL PHTHALATE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-M-14,TYPE SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 7 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 7.5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 1000.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND VIBRATION RESISTANT AND SALT WATER RESISTANT
III PRECIOUS MATERIAL AND WEIGHT - 0.007 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
