> Dwyer 3000MR photohelic diff. pressure switch / gage
Dwyer 3000MR photohelic diff. pressure switch / gage

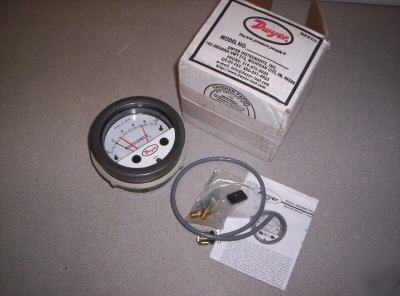

DWYER 3000MR PHOTOHELIC DIFF. PRESSURE SWITCH / GAGE
The Series 3000MR switch/gages combine the functions of a precise, highly repeatable differential pressure switch with a large easy-to-read analog pressure gage employing the durable, time-proven Magnehelic® design. Switch setting is easy to adjust with large external knobs on gage face. Gage reading is unaffected by switch operation - will indicate accurately even if power is interrupted. Solid state design now results in greatly reduced size and weight. Units can be flush mounted in 4 l3/16" (122 mm) hole or surface mounted with hardware supplied. 3000MR models employ versatile electromechanical relays with gold over silver contacts - ideal for dry circuits
Maximum Pressure: 25 psig (1.72 bar)
Media Compatibility: air and non-combustible, non-corrosive gases
Operating Temperature: 20-120°F (-6.7 to 48.9°C) (dry air)
Finish: Baked dark gray epoxy hammerloid
Pressure Connections: l/8-27 NPT female (duplicated side and back)
Power Supply: 24 VDC, regulated
Electrical Connections: 18" cable assembly with 8 conductors,
Single Scale, Range: 0-0.5" H2O
